PRINTER SPECIFICATIONS
Core Printing Performance:
|
Body Size (Length x width x height) 268×292×284mm |
XY resolution 18 microns |
LCD Power adjustable 6mW/cm^2 |
Printing platform 10 to 50 micrometer adjustable |
|
UV light source 60w 405 nm UV lamp |
Power out put 100-240 V~, 90W |
Connectivity USB Port |
Air filtration 40. C, temperature adjustable |
|
Vat membrane ACF |
LCD wavelength 405 nm |
Exposure screen type Aluminum, Frosted glass |
hardware parameters
Body Size (Length x width x height) : 268*292*284mm
Printing Speed : 0.8 - 4 sec/layer
New generation ACF Membrane.
WITH THE NEW GENERATION OF ACF RELEASE MEMBRANE,
THE SUCCESS RATE OF RELEASE IS DOUBLED

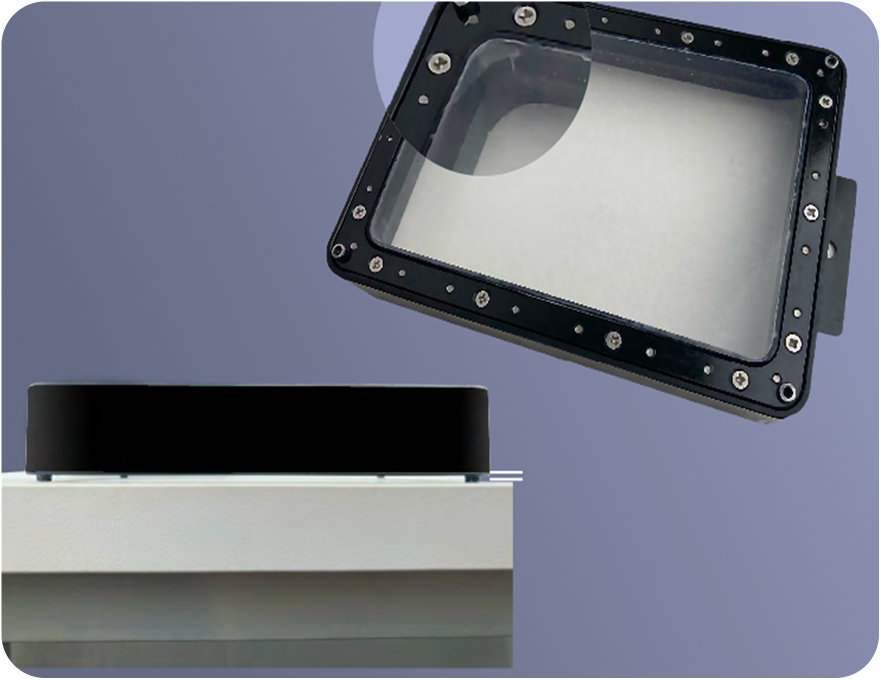

The Resin Tank Is Added With A Positioning Foot To Ensure That When The Resin Tank Is Taken Off And Placed On The Table, The Release Film Is In A Suspended Rotating State To Better Protect The Release Film From Scratches.

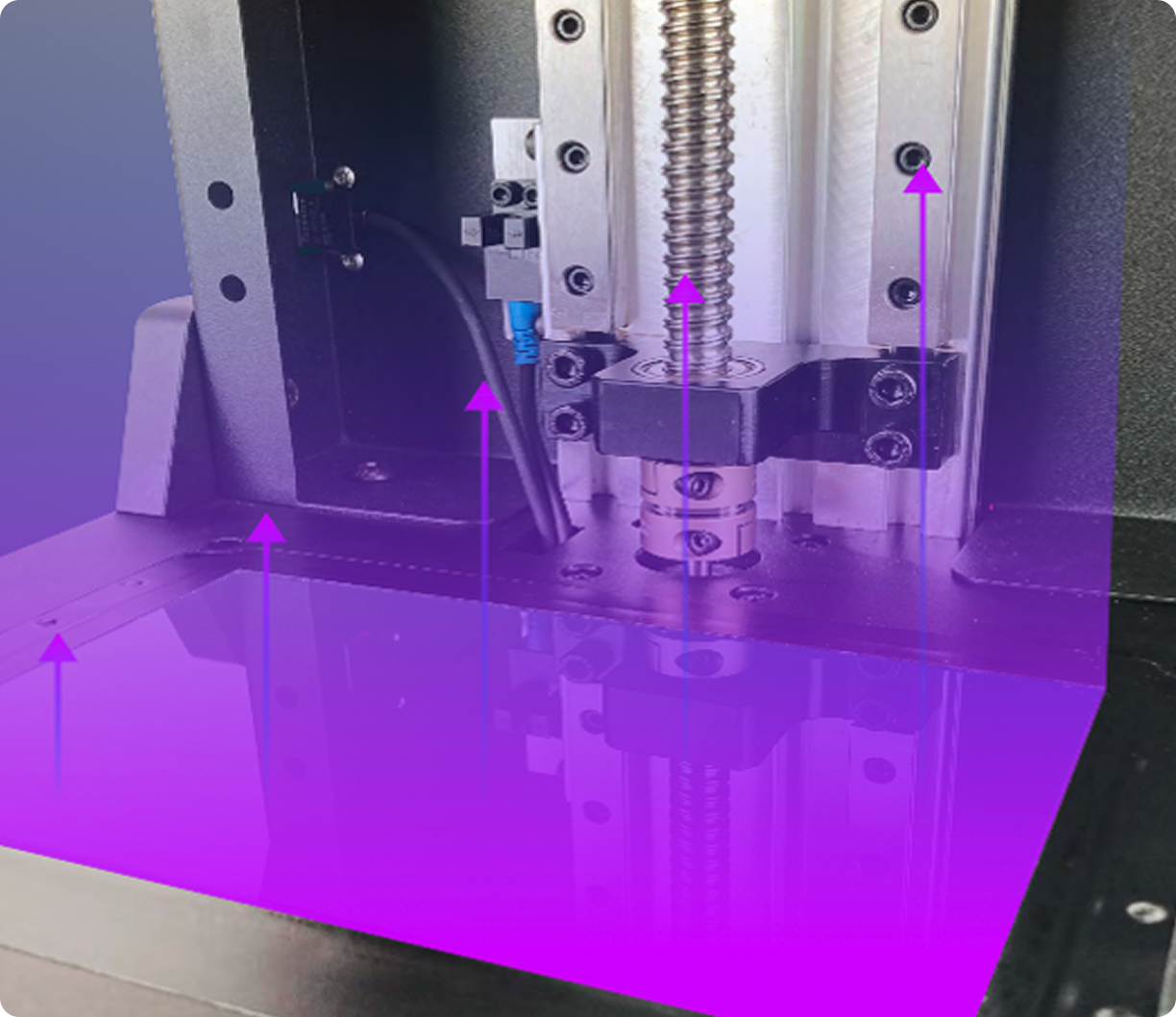

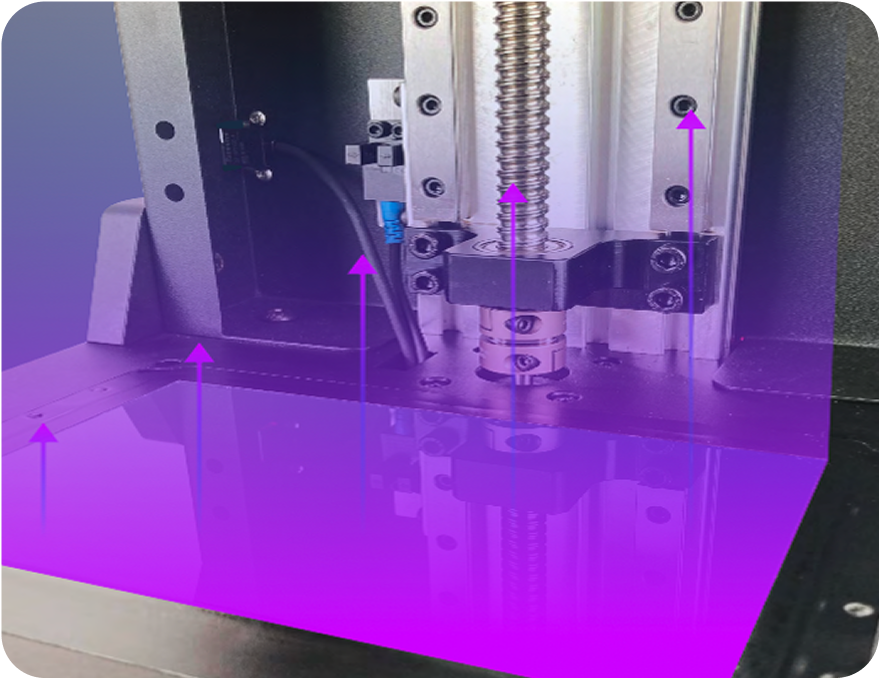

Parallel array light source
PARALLEL ARRAY LIGHT SOURCE+OPTICAL PATH CORRECTION LENS, MORE UNIFORM UV LIGHT
6.8 Inch 9K Black And White Screen, Resolution: 8520*4320
Pixel Accuracy: 0.035mm, Achieving Ultra-High Detail
Accuracy And Longer Service Life

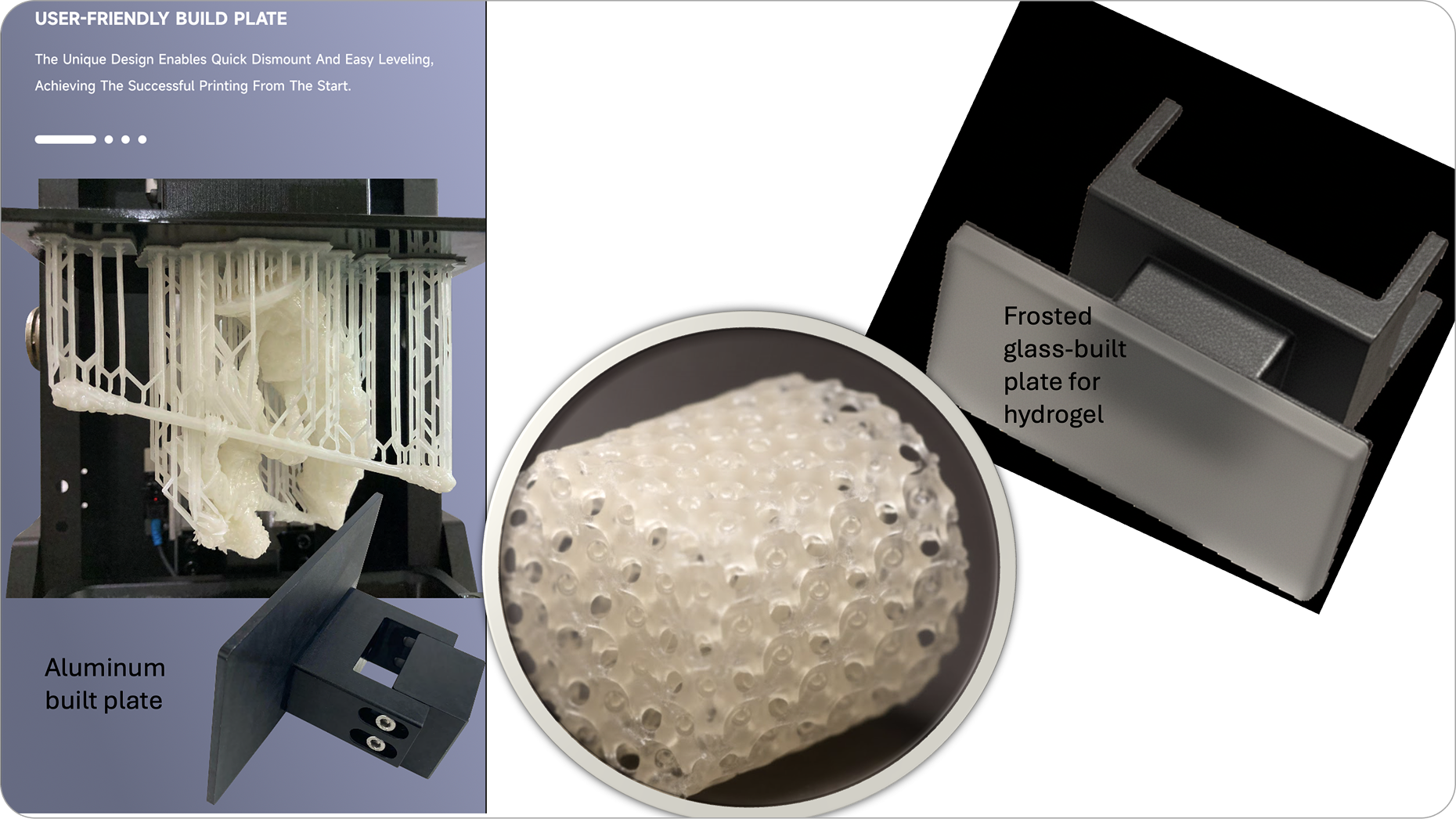

User friendly built plate based on Material to print for Plastic and Hydrogel.
Printing Material

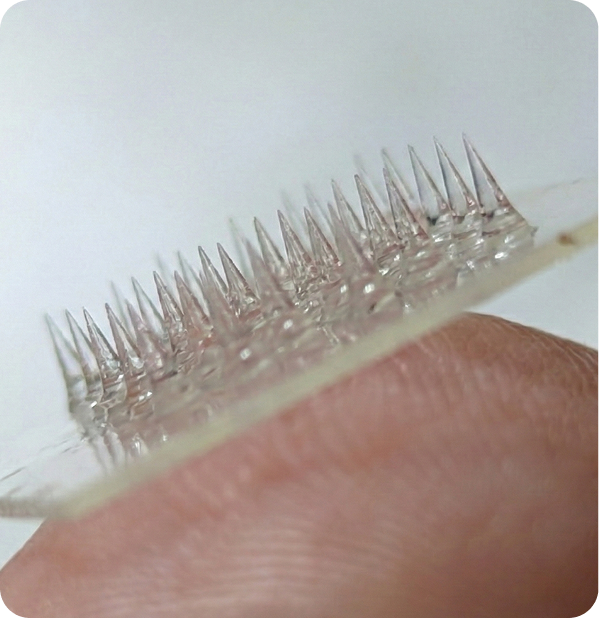

Plastic
Ceramic

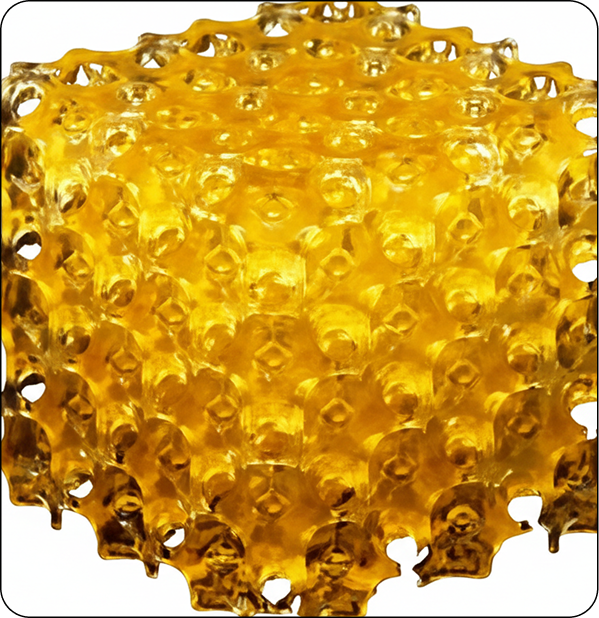

hydrogel
APPLICATIONS

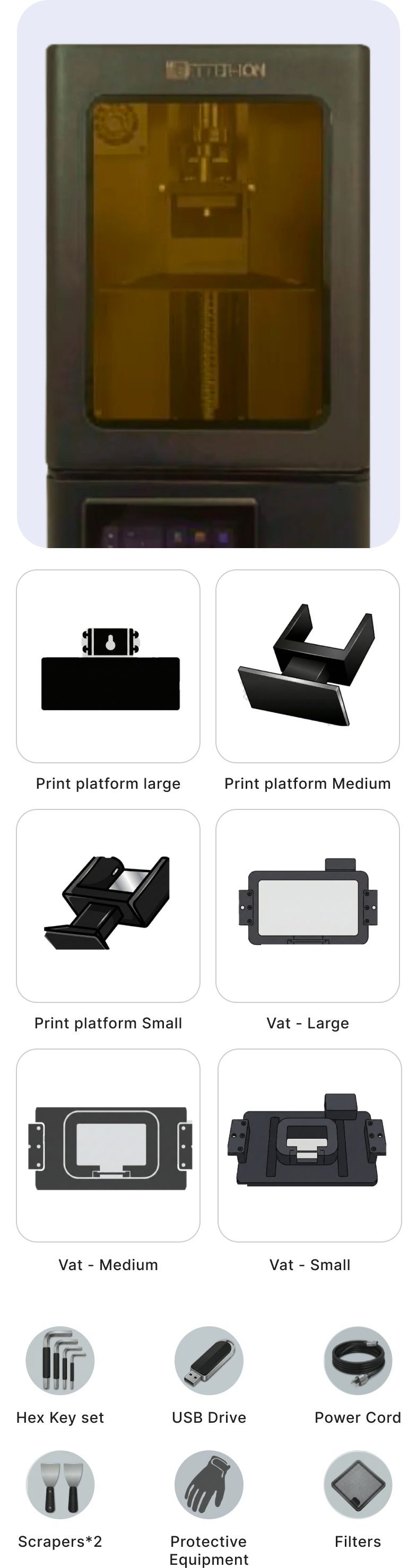

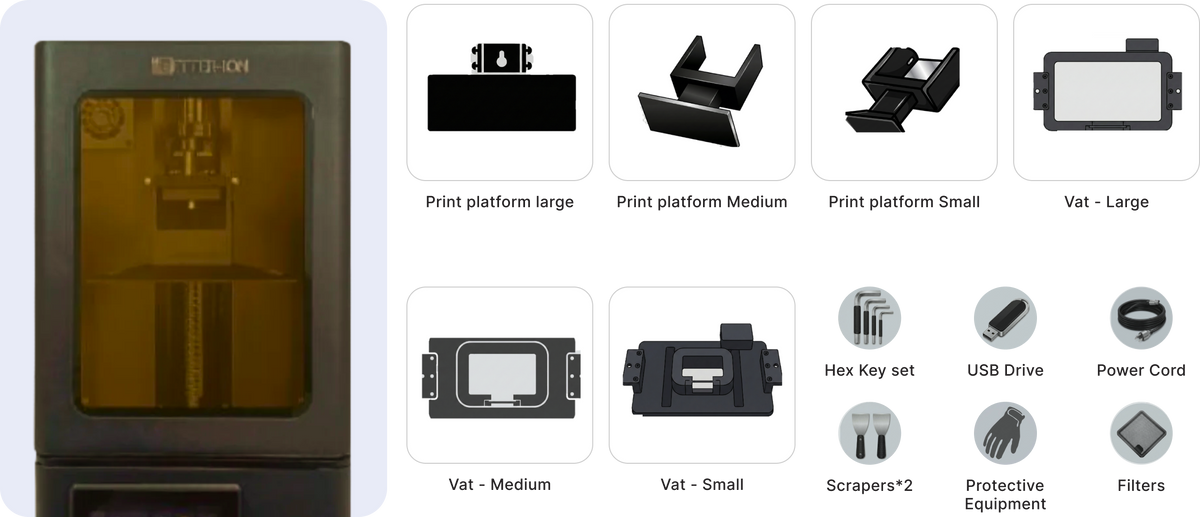

WHAT COMES IN THE BOX
